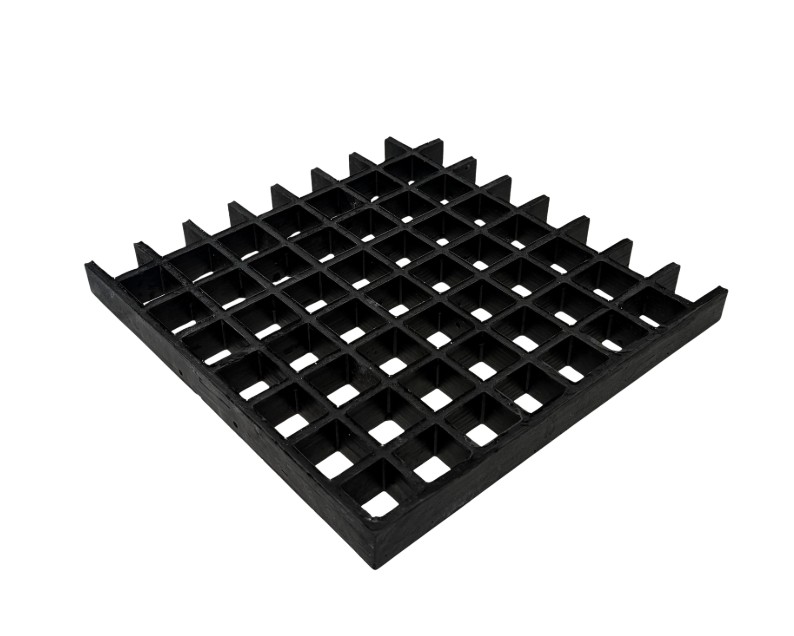

Grating art. nr. 15023 - Spesifiications

Plate dimensions: 1220 × 3658 mm

Height: 25 mm

Pattern: Square, 38 × 38 mm

Profile thickness: 6.5 / 5 mm (top / bottom)

Opening: 32 × 32 mm

Open area: 68%

Weight: 12.2 kg/m²

Weight per plate: 54.4 kg

Surface: U-shaped concave

Color: Black (RAL 9004)

Plastic material: Isophthalic polyester

Fire resistance: ASTM E84-05, Class 1

Flame spread: < 25

Temperature range: -40 °C / 60 °C

Electrical conductivity: Conductive, EN 13463-1, EN 50014
